Tomato Sauce Production

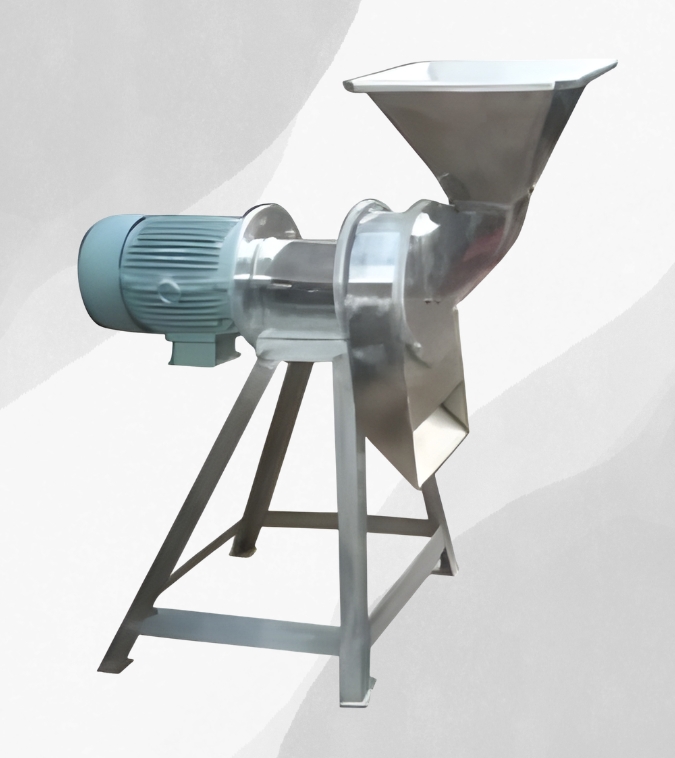

Fruit & Vegetable Pulverizer

Capacity 200 - 300 kg per hr
Material of Construction Contact Part: SS 304, Non-Contact Part: MS
Power 3 HP / 3 Phase Crompton Motor
Use Crushing of Fruits & Vegetables

Specifications

  • Hopper size of crusher: 6 inches
  • Movable crusher included
  • Comes with three different sieves (Jali) for fine production output
  • Frame made from MS Angle 40 x 40 x 5
  • External surface finished with matt finish
more about us

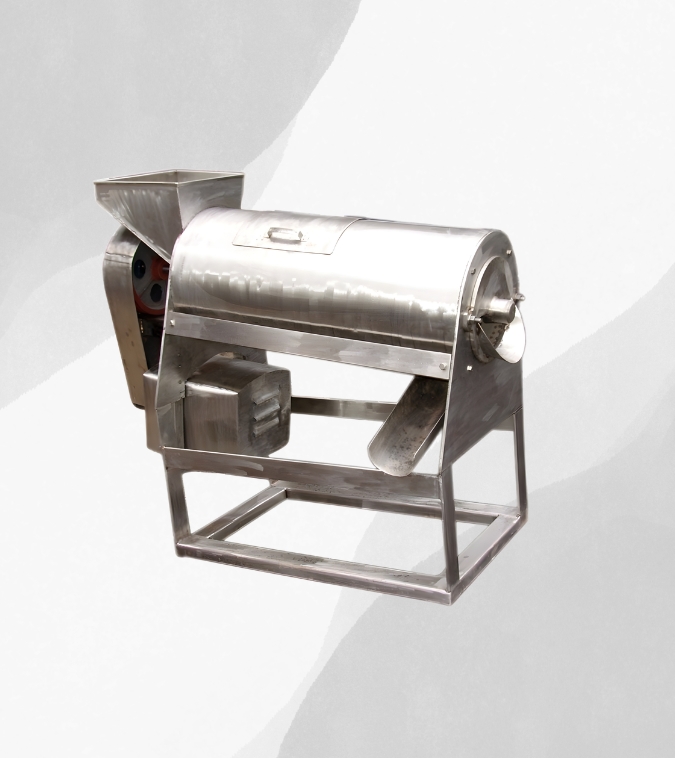

Fruit Pulper

Capacity 100 - 200 kg per hr
Material of Construction Contact Part: SS 304, Non-Contact Part: MS
Power 1 HP / 3 Phase Crompton Motor
Use Extracting seed and skin from the product

Specifications

  • 1/48 perforated sheet sieve for proper pulping
  • Tank made of 1.5 mm SS sheet
  • One set of wooden brushes included
  • Motor & pulleys properly covered
  • External surface finished with matt finish
more about us

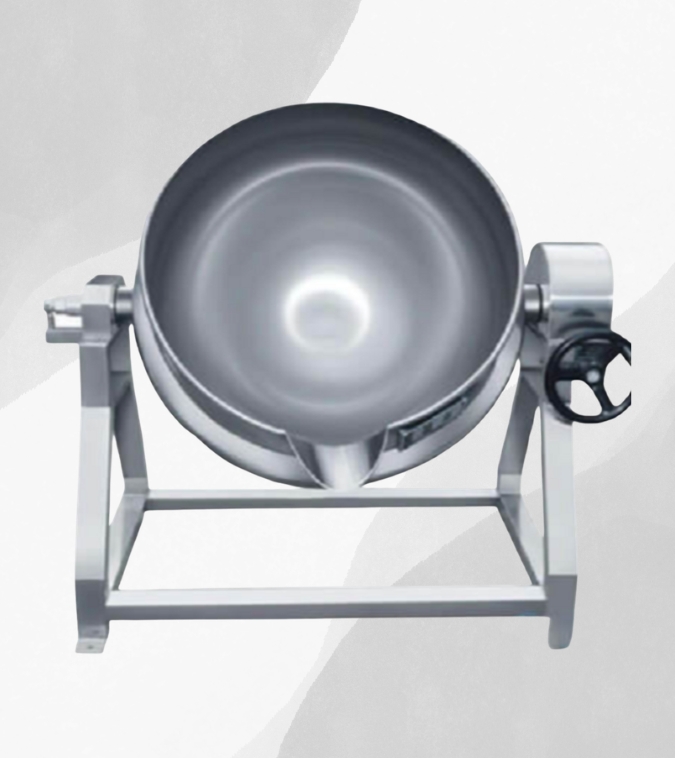

Cooking Kettle Tilting Type

Capacity 220 Liter
Material of Construction Complete SS 304 (including legs)
Use Blanching or cooking of any fruits & vegetables

Specifications

  • Inner jacket: 2.5 mm, Outer jacket: 2.5 mm
  • Comes with fittings: Pressure Gauge, Safety Valve, Steam Trap & Pet Cock
  • External surface finished with matt finish
  • ¾” Steam inlet & outlet
  • Worm gear set used for tilting of kettle
more about us

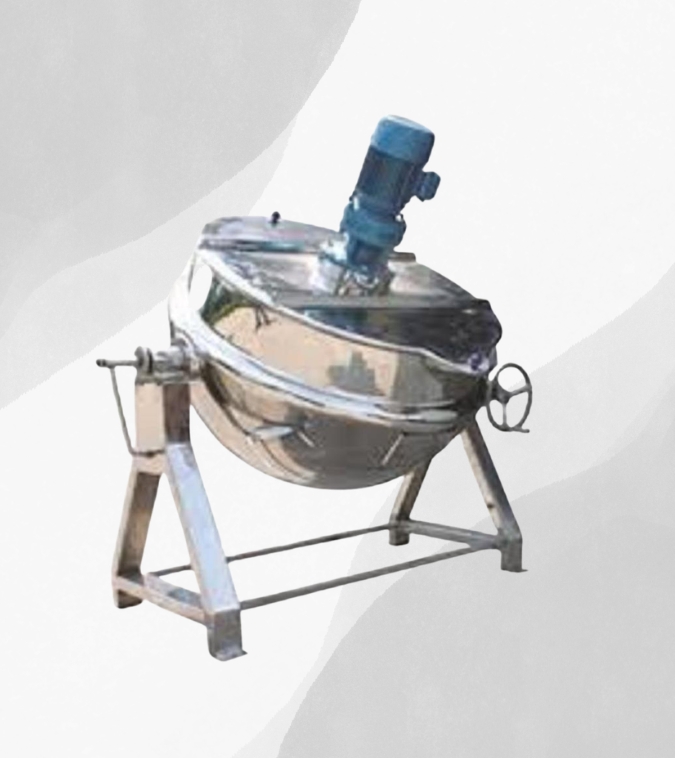

Cooking Kettle with Agitator

Capacity 220 Liter
Material of Construction SS 304
Power 1 HP / 3 Phase Crompton Motor
Use Cooking with the help of scrapper

Specifications

  • Inner jacket: 2.5 mm, Outer jacket: 2.5 mm
  • Fittings included: Pressure Gauge, Safety Valve, Steam Trap & Pet Cock
  • Agitator made from SS Flat 40 x 7 mm
  • ¾” Steam inlet & outlet
  • External surface finished with matt finish
  • Scrapper made with food-grade Teflon
more about us

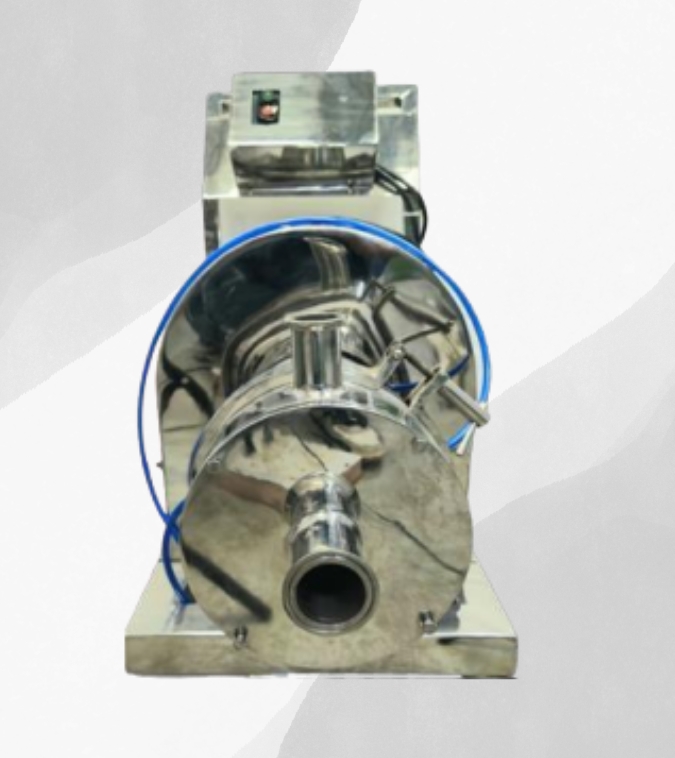

Shear Pump Cum Inline Homogenizer

Capacity Continuous Type
Material of Construction SS 304
Power 5 HP / 3 Phase, High Speed Crompton Motor
Use Increase quality & glaze of mayonnaise

Specifications

  • Pump properly covered for safety
  • Crompton motor used
  • Pore size between male and female clamp: 2 mm
  • Motor RPM: 2800
  • Product reduction: 5 to 20 micron
  • Inlet & outlet: 1.5” with TC clamp
  • External surface finished with matt finish
more about us

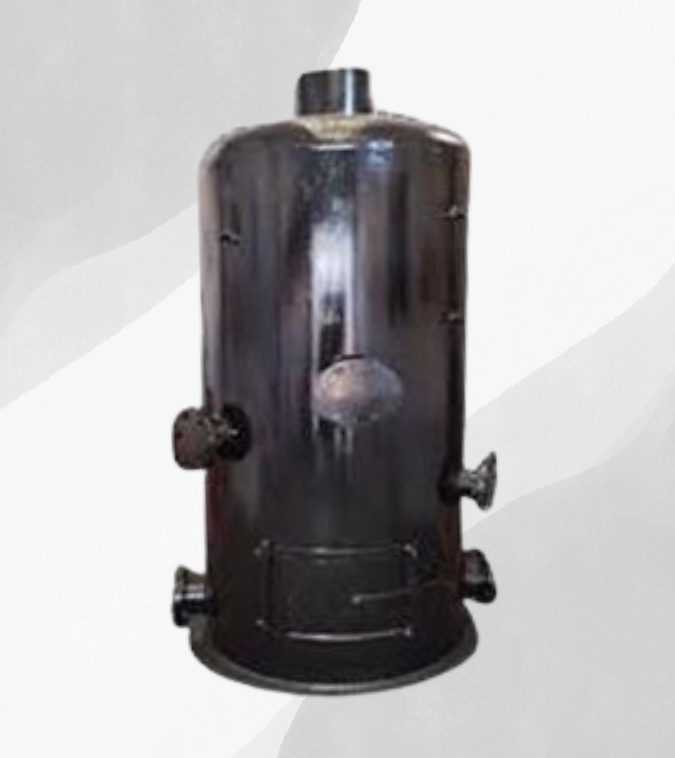

Gas Fired Boiler Non-IBR

Capacity 80 - 100 kg per hr
Material of Construction MS
Power 1 HP / 3 Phase Crompton Motor
Type of Steam Generator Vertical Evaporation
Fuel Gas
Working Pressure (Max) 10.54 kg/cm² (g)
Hydraulic Test Pressure 15.00 kg/cm² (g)
Steam Temperature (Max) 180°C
Thermal Efficiency 81 ± 2%
Electric Supply 3 Phase / 415 V, 50 Hz AC
more about us

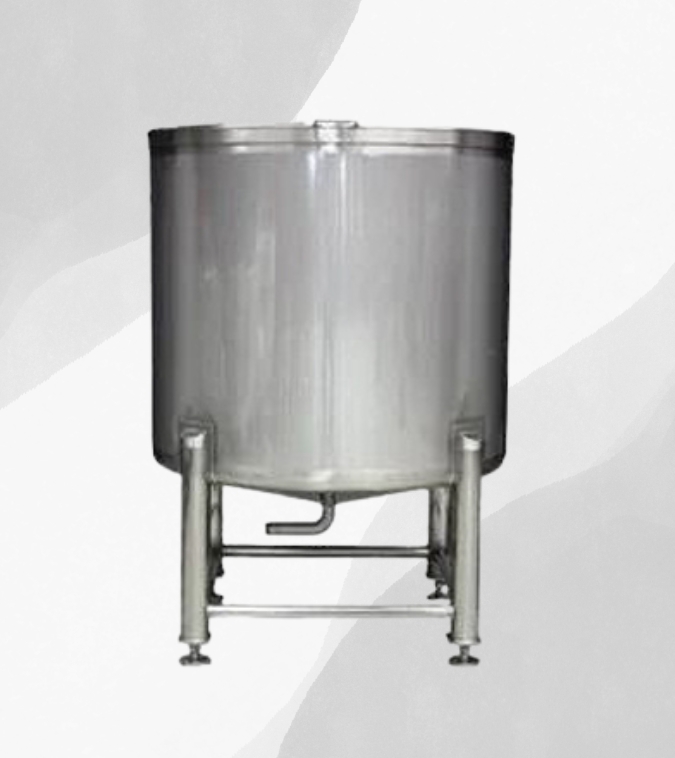

Overhead Holding Tank

Capacity 500 Liter
Material of Construction SS 304
Use Holding of final products

Specifications

  • Tank made from 1.5 mm SS sheet
  • Tank comes with top lid for covering
  • External surface finished with matt finish
  • Outlet of the tank: 1.5”
more about us

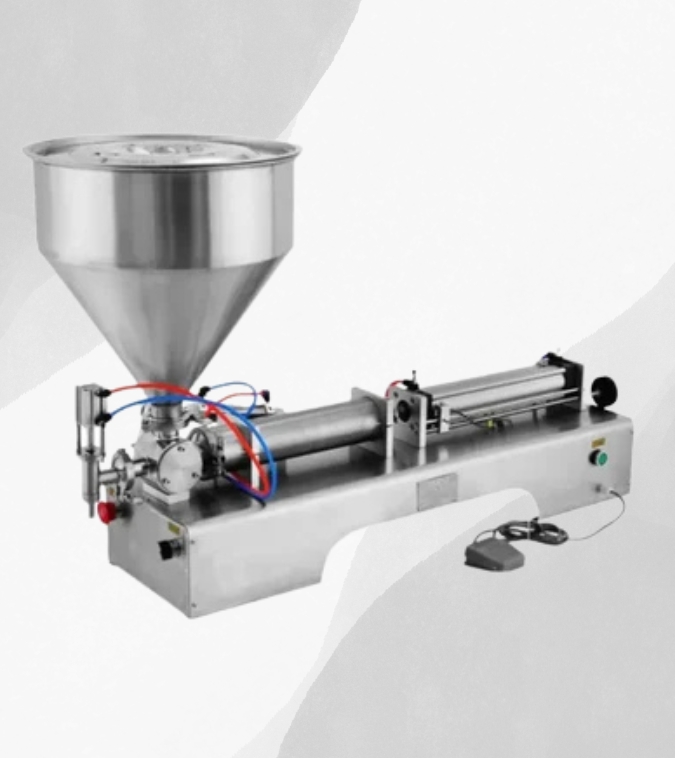

Pneumatic Filler Single Head Machine

Price ₹ 50,000/-
Capacity 8 to 10 Bottles per minute
Material of Construction SS 304
Use Filling of Bottles & Pouches

Specifications

  • Filling range: 100 ml to 1000 ml
  • Auto & Manual modes available
  • Easy setup of filling range from back of the machine
  • Operating air pressure: 4 kg
  • Hopper capacity: 25 liter with top cover
more about us

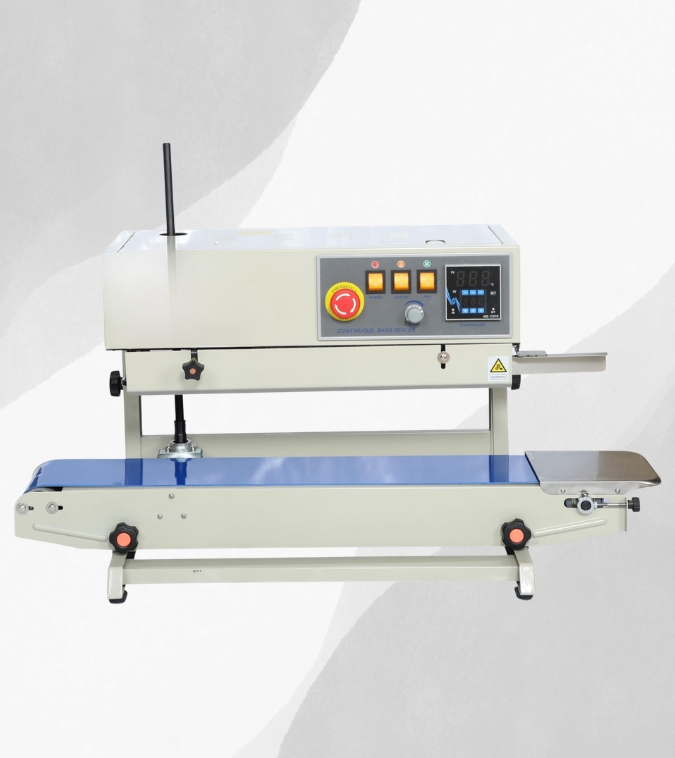

Bend Sealer

Price ₹ 27,000/-
Capacity Continuous
Use Sealing of Pouches
Power 2 KW / 3 Phase Crompton Motor

Specifications

  • Height adjustment available for different sizes of pouch
  • Comes with both horizontal & vertical standing adjustments
more about us

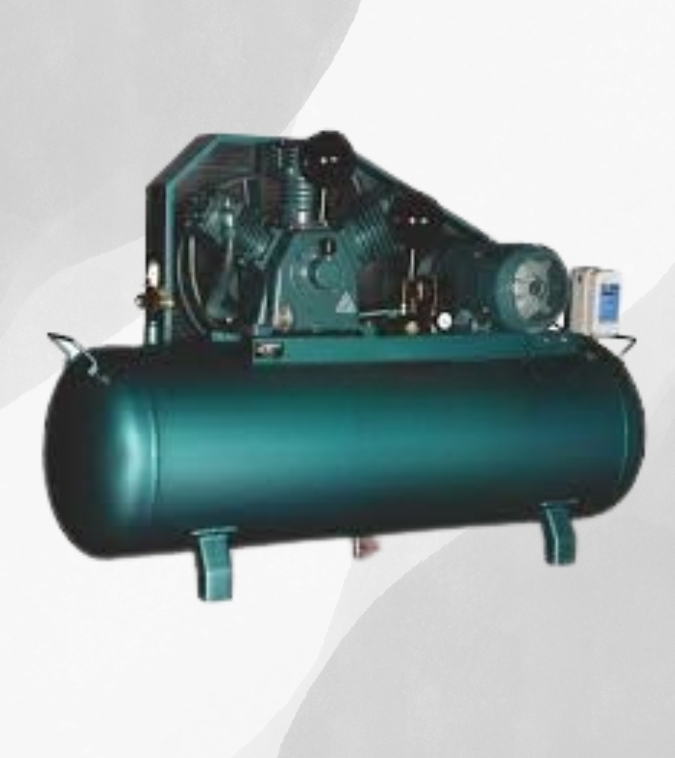

2 HP Compressor

Price ₹ 30,000/-
Power 1.5 HP / 3 Phase Crompton Motor
Capacity 70-liter tank
Piston Size 51” x 51” Double Shaft
Pressure Capacity 8 Bar
more about us
